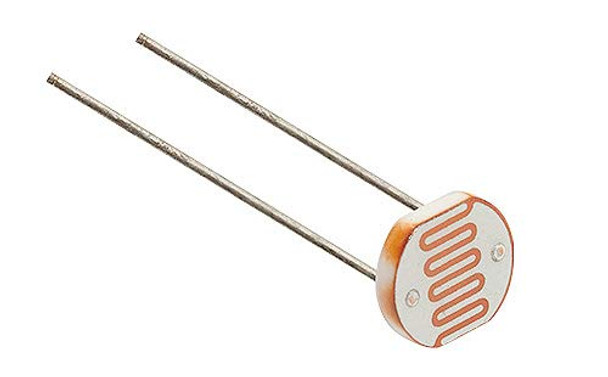

5528 LDR Mini Photoresistor
Features:
Photosensitive resistance is the resistance of a semiconductor material, the conductivity change with light intensity varies.
The use of this feature will work if made of different shapes and light-receiving area of the photosensitive resistance.
Photoresistor is widely used in toys, lamps, cameras and other industries.
Specification:
Model: GL5528
Maximum voltage: 150V, DC
Maximum wattage: 100mW
Operating temperature: -30°C ~ 70°C
Spectral peak: 540nm
Bright resistance (10Lux) (KΩ): 10 – 20
Dark resistance: 1 MΩ
100λ10: 0.6
Response time: 20ms (Rise), 30ms (Down)
Resistance illumination: 3
Package Included:
1x Photo Light Sensitive Resistor Photoresistor Optoresistor 5mm GL5528
