MC-38 Door & Window Magnetic Sensor Switch for IOT / Alarm System
Description: MC-38 Door & Window Magnetic Sensor
Metal shield anti-fire ABS, the alarm sounds when the magnets separated. No external power supply is required– simply connect to wired or wireless alarm control panel GND and N.C ports directly!
Specifications:
- Connecting Mode: N.C.
- Rated current: 100mA
- Rated voltage: 200VDC
- Operating distance: more than 15mm, less than 25mm
- Rated power: 3W
- Dimension: 28x15x0.9cm
- Cable Length: 30.5cm ± 12mm

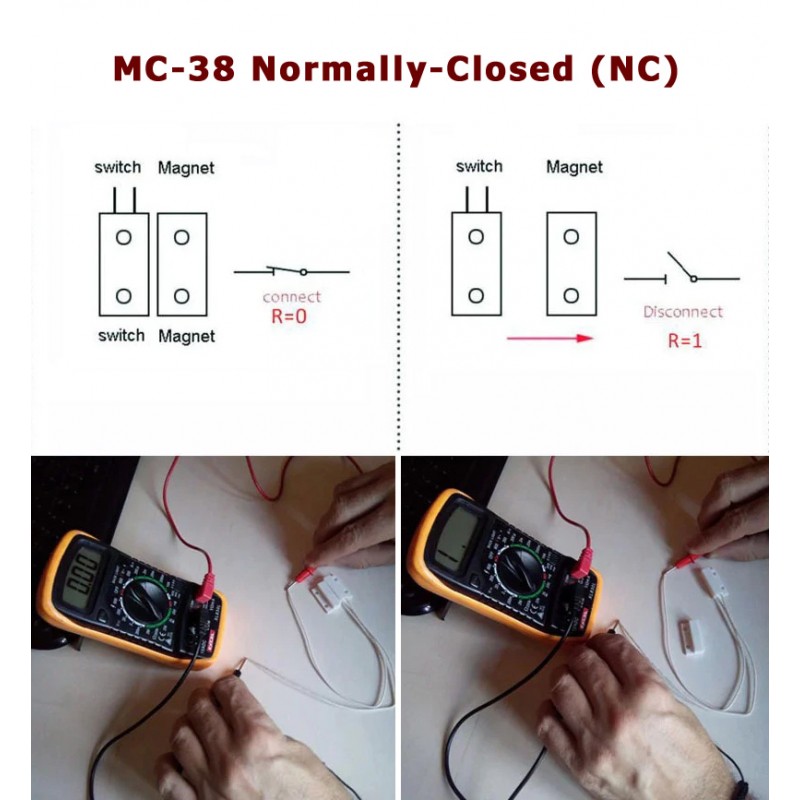

- Switch output: normally closed (switch and magnet are together when the switch is closed)
The MC-38 is a type of magnetic door contact switch commonly used in security systems. It consists of two parts:
The switch (usually wired and mounted on the door frame), and
The magnet (usually mounted on the door).

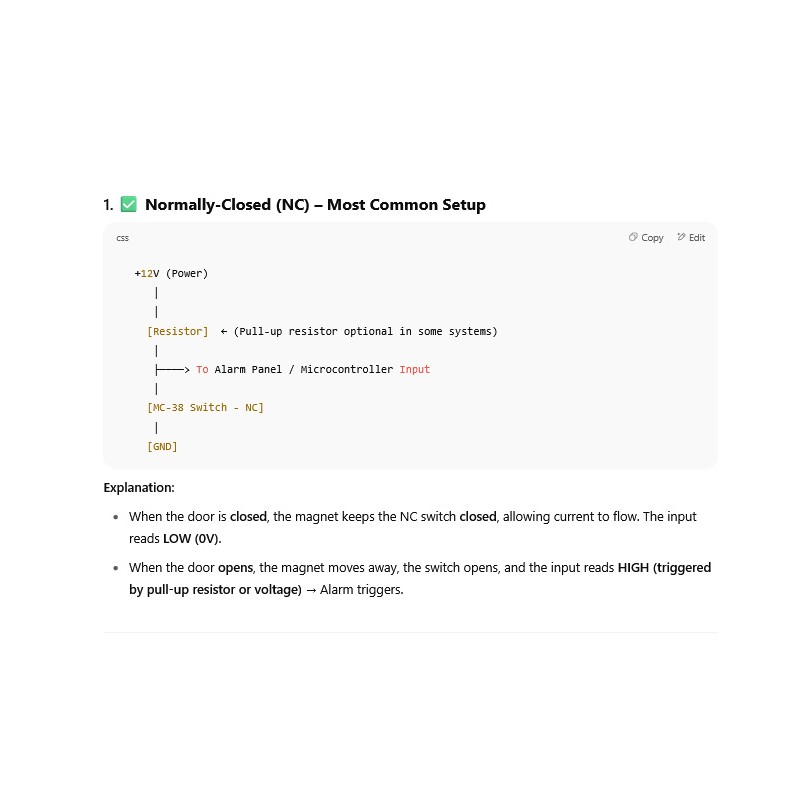

When the door is closed, the magnet is close to the switch, and depending on the type (normally-closed or normally-open), the circuit behaves differently.
